Europe 10KA RCCB Residual Current Circuit Breaker

Name: Europe 10KA RCCB Residual Current Circuit Breaker
Brand: SUNTREE
Price: 3.00 USD

Buy cheap Europe 10KA RCCB Residual Current Circuit Breaker product

Place of Origin : Zhejiang, China

Brand Name : SUNTREE

Model Number : SCB8LT-100H

Supply Ability : 4000 Piece/Pieces per Month

Packaging Details : standard packing

MOQ : 60 Piece/Pieces

Price : $3.00 - $22.00 / Piece

Type : Residual Current

Poles Number : 1P 2P

Product name : residual current circuit breaker/rccb

Rated current : 6-100A

Rated voltage : AC 230V

Breaking capacity : 6KA/10KA

Rated frequency : 50/60 Hz

Poles : 1P,1P+N

Brand : Suntree

Mechanical Life : 20000 Times

Color : White

Material : Plastic

Port : shanghai/ningbo

Contact Now

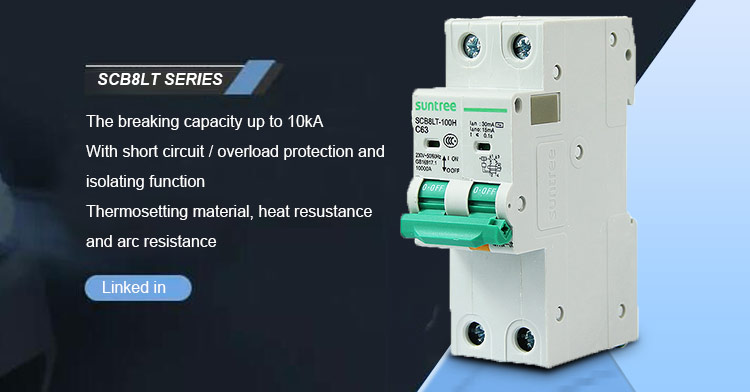

Europe Standard certificate residual current circuit breaker/rccb

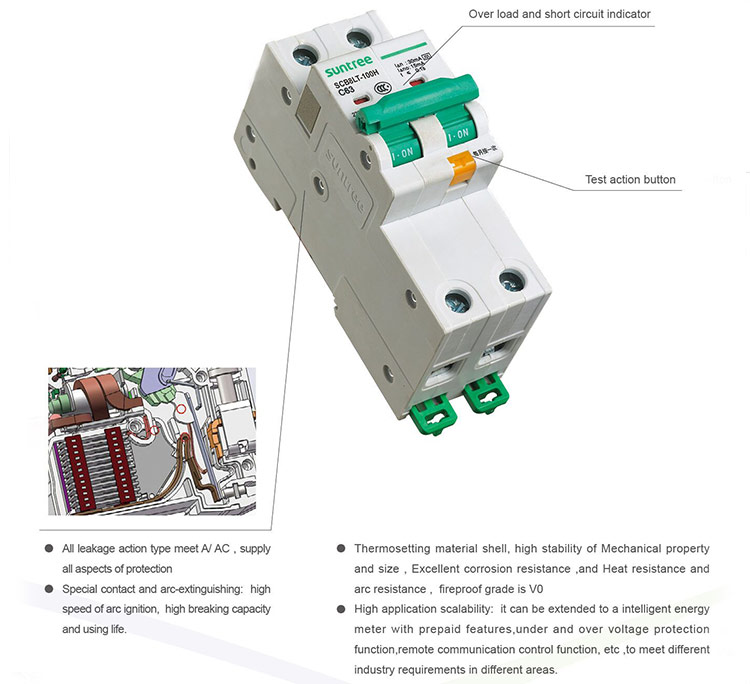

Product Description

1. with short circuit/ overload protection and isolating function
2. When the grid Leakage current is over setting range, the RCBO will trip to cut off power within very short time to ensure personal safety and Avoid accidents due to leakage
3. Using with prepaid energy meter together, it will be turn off automatic when own cost and turn on by manual after recharge

Product Parameters

Type	SCB8LT-100H
Pole	1P+N,2P
Rated Current	6A-100A
Rated Voltage	230V
Rated breaking vapacity	6KA/10KA
Rated residual action current	0.03A/0.05A/0.1A
Rated residual making and breaker capacity	2000A
Delay time for control signature	1s<t<4s
Re-closing time	t<30s
Electrical Life	4000Times
Mechanical	20000Times
Certificates	TUV,CE,IEC,GB
Standard	GB16917.1
Material	thermosetting
Installation	On symmetrical DIN rail 35mm / Panel mounting

Product Details Show

Europe 10KA RCCB Residual Current Circuit Breaker

Recommend Products

Company Profile

XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".

Main Products: AC&DC Circuit breaker, Solar system parts,SISO-40 Solar Inverter/Cable

,Connector,Contactors, MCCB, ATS auto transfer switch, DC Combiner Box, Waterproof distribution box,etc.

Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc

Main markets:Australia,New Zealand,&other worldwide markets

FAQ

Q: How can i trust you and your company ?

A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.

Q: How long is your products warranty ?

A: The warranty period of our products is 2 Years.

Q: How about inspection?

A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.

Q: What is the service offered by company?

A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement.

We also have the sales team to offer good service from pre-sale to after-sale.
