TUV Suntree Twin Core Photovoltaic 4mm2 Solar Panel Cords

Name: TUV Suntree Twin Core Photovoltaic 4mm2 Solar Panel Cords
Brand: Suntree
Price: 0.67 USD

Buy cheap TUV Suntree Twin Core Photovoltaic 4mm2 Solar Panel Cords product

Place of Origin : Zhejiang, China

Brand Name : Suntree

Model Number : PV-2x4mm2

Supply Ability : 10000 Meter/Meters per Month

Packaging Details : standard packing

MOQ : 100 Meter/Meters

Price : $0.67 - $3.00 / Meter

Insulation Material : XLPE

Type : Low Voltage

Application : solar panel system

Conductor Material : Copper

Jacket : halogen free crosslinked polyolefin

Product name : 4mm Photovoltaic Solar DC Cable

Color : Red/Black

Certificate : TUV,CE

Rated voltage : AC 600/1000V DC 1000/1800V

Core : 1 Core/2 Core

Cross-section : 1.5/2.5/4/6/10 mm2

Rated current : 20-95A

Weathering resistance : 4.97Ω

Finished cable o.d : 5.35+-0.1mm

Rated temp : -40℃-+90℃

Port : Ningbo/Shanghai

Contact Now

TUV Approved Suntree Twin Core 4mm2 Photovoltaic Solar DC Cable Electrical Power Cable

Product Description

1. Dual wall insulation.Electron beam cross-linked

2. Excellent resistance to U.V,oil,greases,oxygen and ozone

3. Excellent resistance to abrasion

4. Halogen free, flame retardant,low toxicity

5. Excellent flexibility and stripping performance

6. High current carring capacity

7. TUV approved

Product Parameters

Single Core	Cross section mm²	Strand design No.x ø(mm)	Conductor diameter mm	Conductor diameter Ω /km	Outer diameter mm
PV-1*1.5 mm²	1.5	30x ø 0.25	1.6	13.9	4.5
PV-1*2.5 mm²	2.5	48x ø 0.25	2.0	8.06	5.3
PV-1*4.0 mm²	4.0	56x ø 0.3	2.6	4.97	6.2
PV-1*6.0 mm²	6.0	81x ø 0.3	3.3	3.52	7.2
PV-1*10.0 mm²	10.0	200x ø0.25	4.4	2.12	8.3
PV-1*16 mm²	16.0	224x ø 0.3	5.2	1.95	9.5
Twins Core
PV-2*1.5 mm²	1.5	30x ø 0.25	1.6	13.9	5.80*9.30
PV-2*2.5 mm²	2.5	48x ø 0.25	2	8.06	6.20*9.90
PV-2*4.0 mm²	4	56x ø 0.3	2.6	4.97	6.90*11.30

TUV Suntree Twin Core Photovoltaic 4mm2 Solar Panel Cords

Product Details Show

Recommend Products

Company Profile

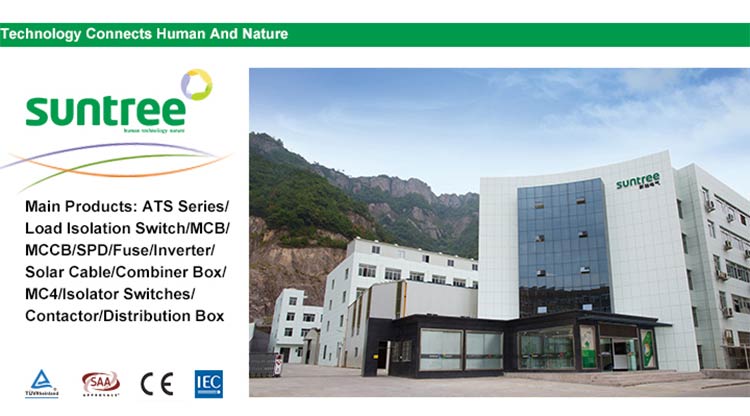

XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".

Main Products: AC&DC Circuit breaker, Solar system parts,SISO-40 Solar Inverter/Cable

,Connector,Contactors, MCCB, ATS auto transfer switch, DC Combiner Box, Waterproof distribution box,etc.

Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc

Main markets:Australia,New Zealand,&other worldwide markets

FAQ

Q: How can i trust you and your company ?

A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.

Q: How long is your products warranty ?

A: The warranty period of our products is 2 Years.

Q: How about inspection?

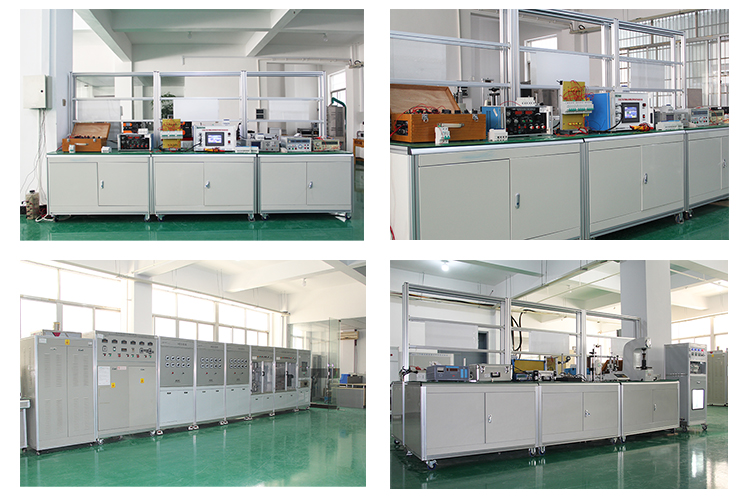

A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.

Q: What is the service offered by company?

A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement.

We also have the sales team to offer good service from pre-sale to after-sale.
